Application Overview
The high-efficiency coating machine is mainly used in the pharmaceutical and food industries. It is an efficient, energy-saving, safe, clean, and GMP compliant electromechanical integrated coating equipment for organic film coating, water-soluble film coating, slow and controlled release coating, drop pill coating, sugar coating, and chocolate and candy coating of tablets, pills, candies, etc.
Equipment characteristics
★ Constant pressure variable displacement peristaltic pump, with the cancellation of the return pipe.
★ Touch screen display.
★ Expand the PLC module, all parameters are set on the control panel.
★ Sound insulation and insulation, providing insulation for the interior of the machine.
★ Fully sealed, negative pressure operation.
★ Spray gun (Iwata, Japan) - uniform atomization, large spray surface, adjustable direction, no leakage and blockage of the nozzle.
★ Promote the frequent mixing, rolling, and exchange of materials to avoid fragmentation and improve the yield.

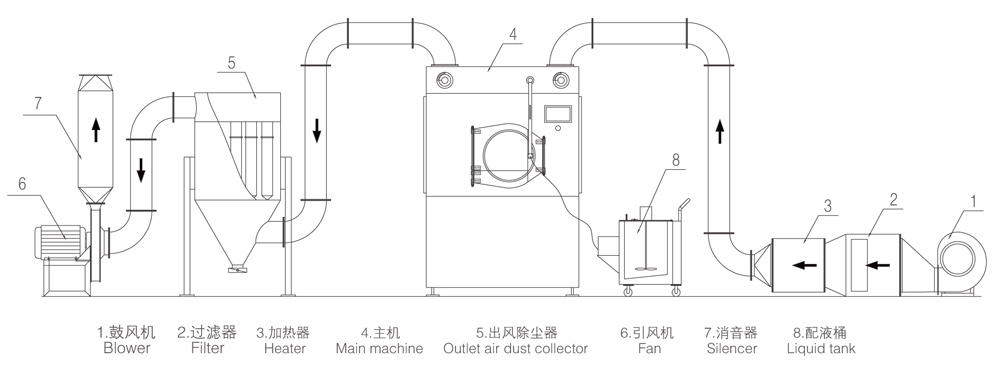

Technological process
Project specifications | BGB-5 | BGB-40 | BGB-80 | BGB-150 |
Production capacity (kg/batch) | 5 | 40 | 80 | 150 |
Drum speed (rpm) | 6-30 | 6-30 | 3-15 | 3-15 |
Main motor power (kw) | 0.75 | 1.1 | 1.5 | 2.2 |
Efficient filtration hot air cabinet motor power (kw) | 0.35 | 0.55 | 1.1 | 1.5 |
Dust removal exhaust fan motor power(kw) | 2.2 | 3 | 3 | 5.5 |
Overall dimensions of the host (length × wide × High)(mm) | 810×710×1410 | 1000×800×1600 | 1250×990×1880 | 1570×1260×2060 |
All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
